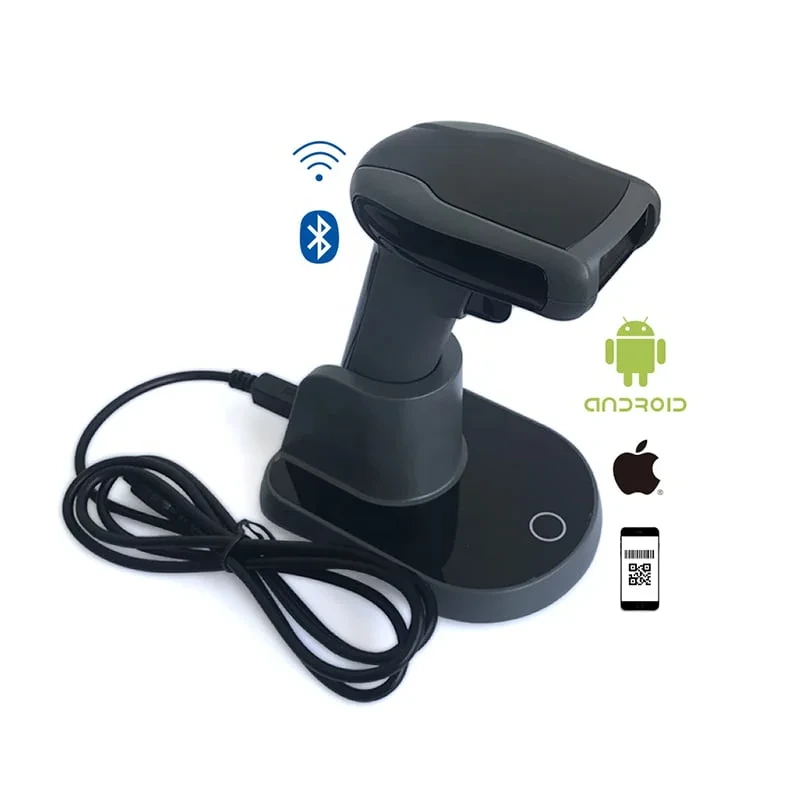

TC-3030——Wireless Bar Code Reader Scanner
We offer bar code reader scanner related products, please feel free to submit your inquiry using the form below. We will respond within 8 hours.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Wireless Bar Code Reader Scanner
- Triple connectivity: 2.4G wireless, Bluetooth, and USB—all in one scanner
- Seamless Connectivity: Wireless range up to 50m, Bluetooth up to 10m—even indoors, real-time uploads.
- High-Performance Scanning: Perfect for DPM on PCB.
- Ample Storage: 16MB offline mode to keep you going.
- User-Friendly: Multi-language support, easy to set up.
- Long-lasting Power: 2600 mAh Li-battery for extended standby.
- Versatile Scanning: Effortlessly scan 1D & 2D barcodes on paper, film, screens, and more—no code too tough
| Mechanical Parameters | |
| Weight | 350g(without cable) |
| Size | Scanner: 160 mm × 95 mm W × 60mm H;
Cradle: 130 mm × 100 mm W × 65mm |
| Interface | USB |
| Performance Parameters | |
| Light source | Illumination: white LED, Aiming; red LED, 525nm |
| Image sensor | 1280×800 CMOS |
| Processor | ARM32-bit |
| Resolution | 1D：≥3mil，2D：≥8.7mil @PCS90% |
| Depth of field | 3mil：55~100mm，13mil：55~350mm |
| Scan mode | Manual scanning, automatic induction scanning |
| Prompt | LED indicator light, buzzer |
| Scan angle | Roll：±360°,Pitch：±60°or greater,Yaw：±70°or greater） |
| Field of view | Horizontal 40°× Vertical 30° |
| Motion tolerance | 25cm/second |
| Power | DC5V(input),180mA(operating) |
| Print contrast | 25%PCS |
| Ambient light | 70000Lux |
| Wireless communication mode | Synchronous mode, storage mode |
| Transmission distance | 2.4GHz: 50 meters; Bluetooth: 10 meters（Open distance） |
| Storage capacity | 16Mb |
| Battery | 2600mAh |
| Charging time | About 5 hours |
| Continuous scanning time | ≥16hours |
| Standby time | ≥4 weeks |
| Supported barcodes | 1D: Codabar, Code39, Code32, Interleaved 2 of 5（ITF25）, Industrial 2
of 5, Matrix 2 of 5, Code93, Code11,Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN,GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT, MSI, Febraban 2D: PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Environmental Parameters | |
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Relative humidity | 5% to 95%（Non-condensing） |
| Transport vibration test | 10H@125RPM |
