TC-TOUCH-K116——11.6 Inch Touch Screen Ordering Kiosk
- All-in-One Integration
- Tilt for a Better View
- Swap Parts in Seconds
- Blazing-Fast 80mm Printer at 200mm/s

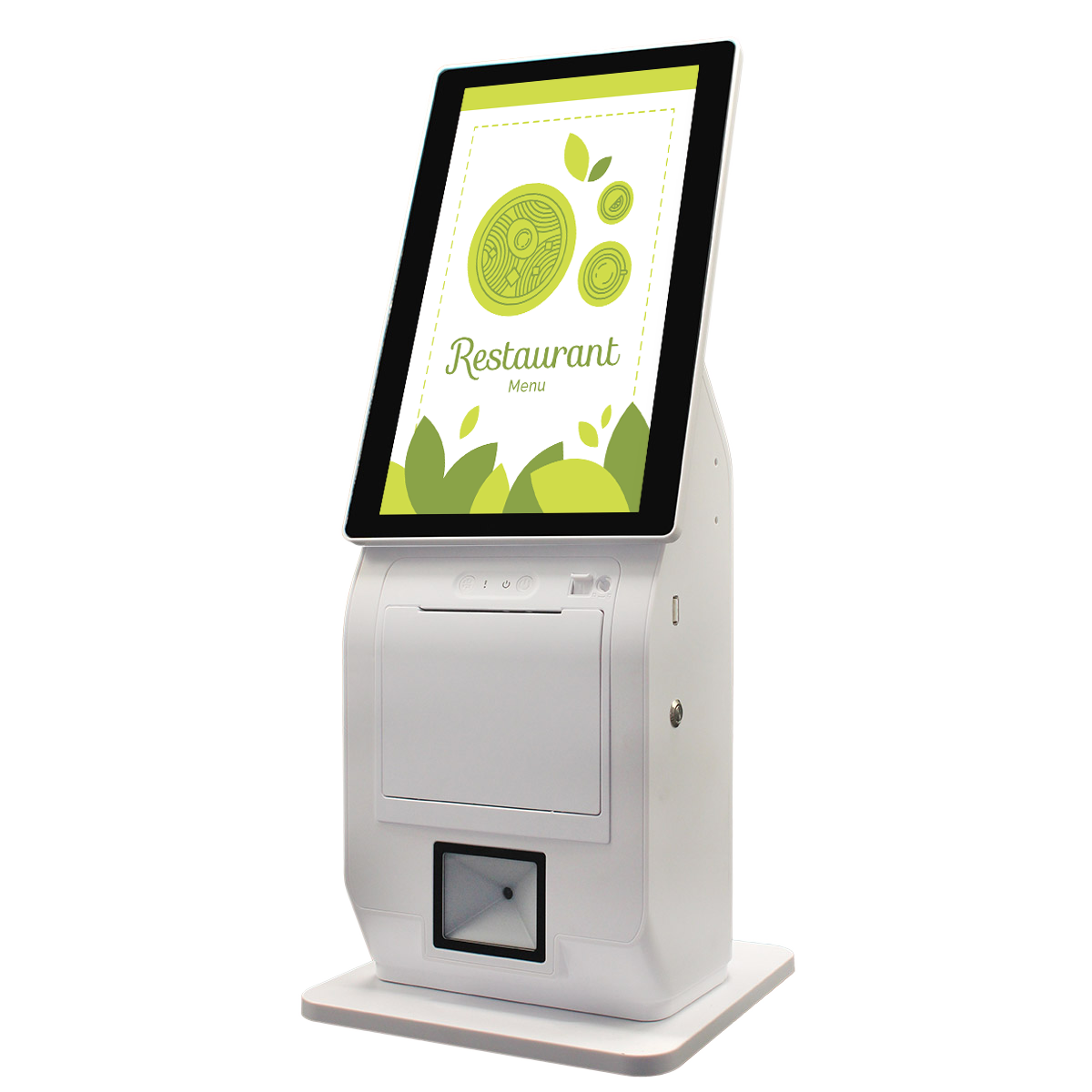

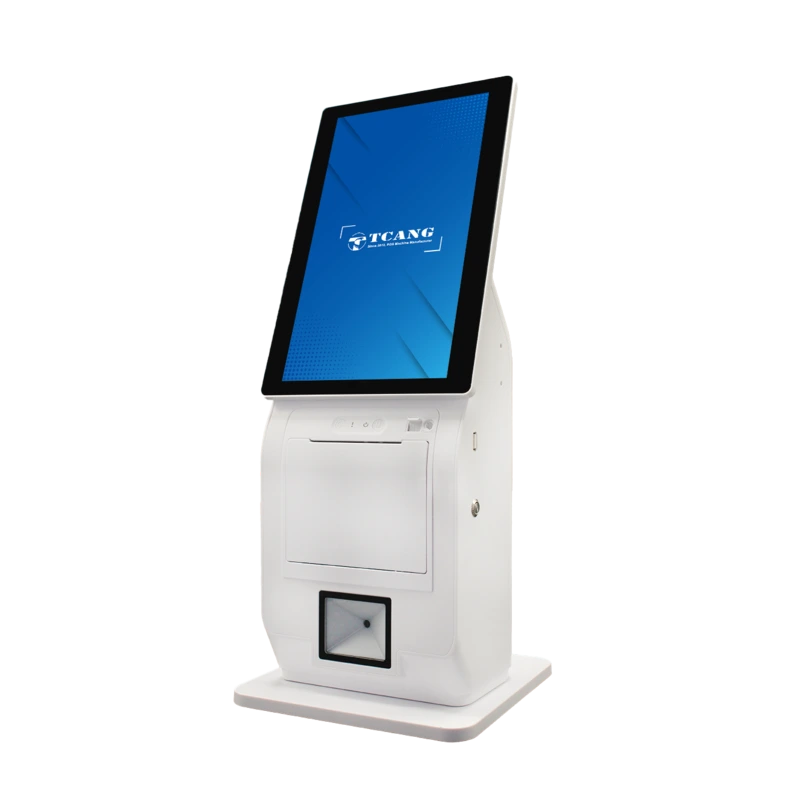

TC-TOUCH-K116 touch screen ordering kiosk is an 11.6” all-in-one self-service terminal with built-in printer and scanner, featuring a compact, space-saving design for high-traffic environments. Ideal for restaurants, retail, and hospitality, it streamlines transactions with seamless functionality and ultra-responsive touch controls.
All-in-One, All You Need
The TC-TOUCH-K116 is an 11.6” touch screen ordering kiosk featuring a vibrant TFT-LED display (1366×768 px), an 80mm high-speed thermal printer, and a high-precision scanner head. Its compact, all-in-one design maximizes functionality while saving space, making it ideal for high-traffic environments like retail, dining, and hospitality.
Two Sizes, One Perfect Fit
The TC-TOUCH-K116 touch screen ordering kiosk offers dual form factors to adapt to any space, ensuring maximum efficiency without compromising on functionality. Whether compact or expanded, it’s designed to save every inch while delivering seamless performance.
| Specifications | ||
|---|---|---|
| lntel@ Core J6412/N97/N100/I3/I5 | Rockchip@ RK3568 | |
| CPU | Quad-core Max Turbo 2.60 GHz | 4 x Cortex-A55,2.0GHz |
| OS | Windows10/11/ Linux | Android 11/Android13 |
| Memory | 4GB DDR4 2666MHz1 x SO-DIMM slot up to 8GB/16G | 2G/4G/8G |
| SSD | M.2/MSATA
128 GB/ 256GB / 512GB |
32G/64G |
| Size/Resolution | 11.6″ TFT-L ED 1366*768 | |
| Touch Screen | True-flat Capacitive Touch Screen | |
| Printer | 80mm thermal receipt printer，Printing Speed 200mm/s,Work Life 100 km,Cutter Life 1,000,000 times, Paper Roll: Max Diameter 80mm |
|
| Scanner | Scanner platform (1D+2D) | |
| Stand design | Desktop/ Wall-mounted | |
| 1/O port | RJ11 x 1,Rj45 x 1,USB3.0 x 4, USB2.0 x 1,DC-in x 1.COMx 1, HDMI x1 ,Audio x 1,VGAx 1 | SIMSlot x 1,USB3.0 x 2,TFSlot x1，COM x1,USB2.0 x 2,Rj45 x 1,RJ11x 1，DC-in x 1，Audio x1 |
| Carton Size(mm) | 430mm(L) × 410mm(W) × 755mm(H) | |
| Weight | 5kg | |
| G.W. | 10kg | |
|
Optional |
||
| Card Reader | RFID (only read/ read+write) | |
| Wifi+Buletooth | 2.4G+5GWIFI | / |
| Speaker | 1* 2W | 1* 2W |
